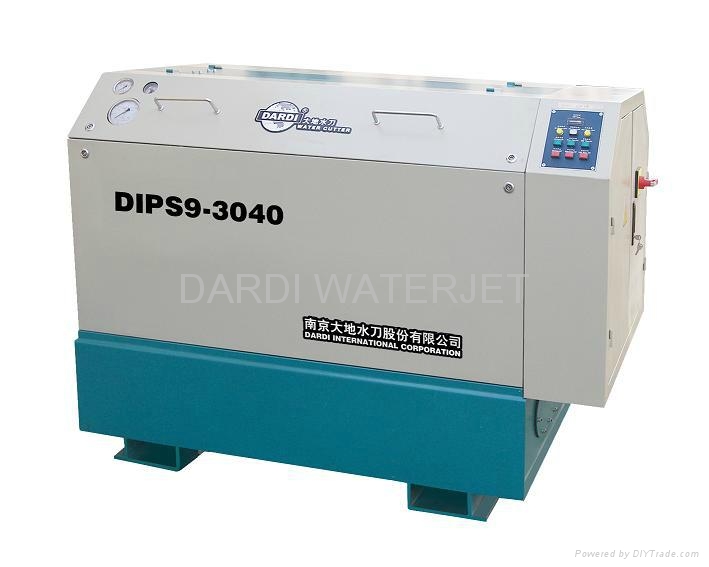

Waterjet Cutting System---Uhp System Dardi
Model No.︰
DIPS9-3040
Brand Name︰
DARDI
Country of Origin︰
China
Minimum Order︰
1 pc
Total 57 Related Items
Product Description
Waterjet cutting system---UHP System Dardi (Model: DIPS9-3040)
Intensifier Qty.: 1
Max. Pressure: 300MPa/40000psi
| UHP System |
| Model |
DIPS6-2230 |
DIPS9-3040 |
DIPS9-6040 |
DIPS9-7540 |
DIPS7-3740 |
| Drive system |
| Drive system |
Motor |
| Pressure system |
| Pressure system |
Intensifier |
| Intensifier Qty. |
1 |
1 |
2 |
3 |
1 |
| Specification Date |
| Max.pressure |
300MPa/40000psi |
380MPa/55000psi |
400MPa/60000psi |
| Max.Flow rate |
3.1L/min |
3.7L/min |
7.4L/min |
11L/min |
3.7L/min |
| Power |
22kw/30HP |
30kw/40HP |
60kw/80HP |
75kw/100HP |
37kw/50HP |
| Pressurization rate |
24:1 |
20:1 |
20:1 |
20:1 |
20:1 |
| Oil Pressure |
0-150 bar |
0-200 bar |
| Oil type |
46#(15-40ºC)
Hydraulic oil 46#(Environment 15-40ºC) |
| Power Supply |
220/380/415VAC 3 Phase |
Payment Terms︰
t/t West Union
|
